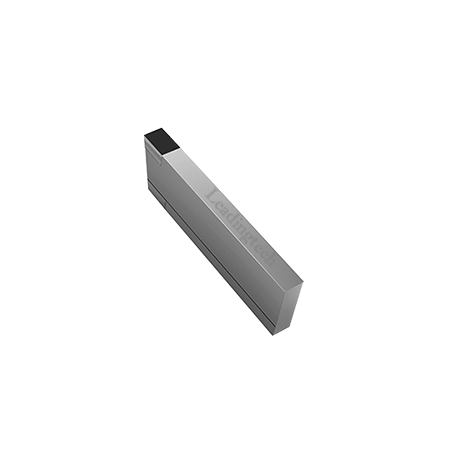

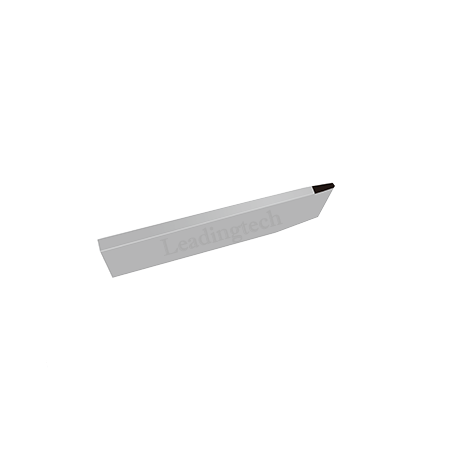

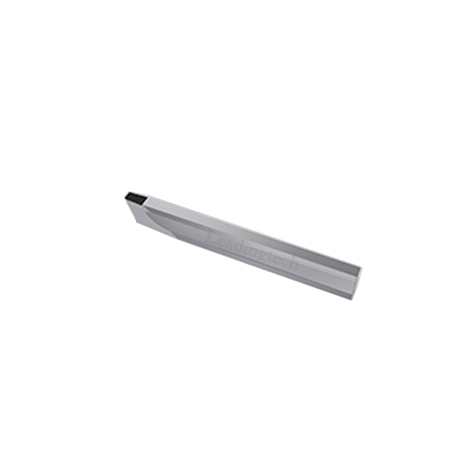

PCD/CBN Grooving Tools
Product series: PCD/CBN Grooving Tools.
Application: Grooving the aluminium and cast iron pistons with high tolerance.
Packaging: 1pcs in one plastic box.
Delivery time: Three weeks.

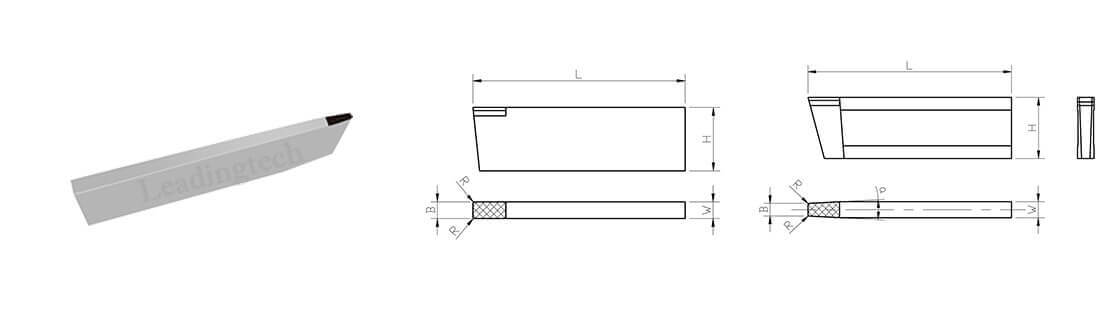

Specification
|
Basic dimension |
|||||
|
L (mm) |
H (mm) |
W (mm) |
B (mm) |
R |
Tolerance |
|
40 |
12 |
0.8 |
0.8 |
0.2 |
+/-0.003 |
|
40 |
12 |
1.5 |
2.0 |
0.2 |
+0.003 |
|
40 |
15 |
2.5 |
2.5 |
0.4 |
-0.003 |
|
50 |
12.7 |
2.0 |
2.0 |
0.3 |
+/-0.003 |
|
70 |
12 |
1.55 |
1.55 |
0.2 |
+0.003 |
|
70 |
15 |
3.2 |
3.2 |
0.25 |
+0.003 |
|
70 |
19 |
2.55 |
1.85 |
0.4 |
+/-0.003 |
|
75 |
12 |
3.55 |
3.55 |
0.2 |
+/-0.003 |
|
75 |
15 |
4.5 |
3.55 |
0.4 |
+/-0.003 |
|
75 |
19 |
1.15 |
1.15 |
0.2 |
+/-0.003 |
|
80 |
12 |
1.55 |
1.55 |
0.1 |
+/-0.003 |
|
100 |
15 |
3.55 |
2.95 |
0.2 |
+/-0.005 |
|
Other special grooving size could be supplied upon customer’s drawing. |
|||||
