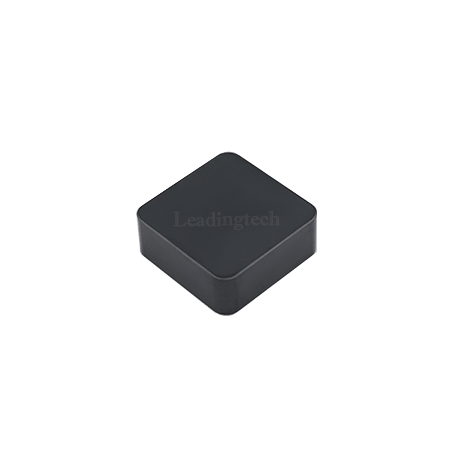

SNGN Solid CBN Insert
Product series: SNGN Solid CBN insert.
Application: Roughing and finishing cast irons,hardened steels and other alloy steel.
Packaging:10pcs in one plastic box.
Delivery time: One week.

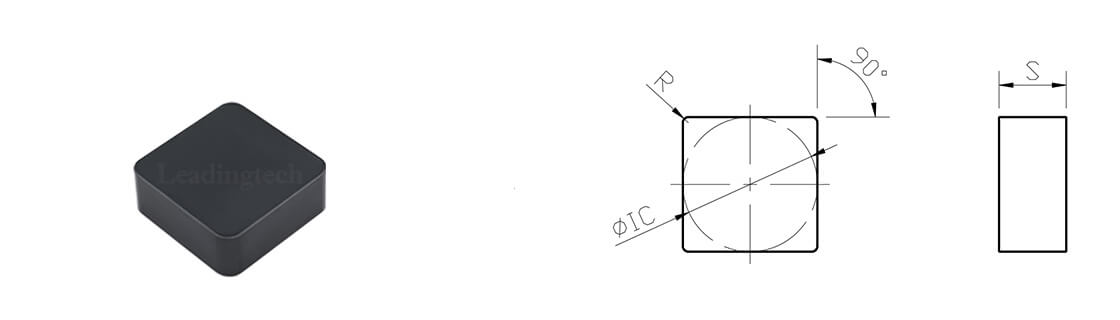

Specification
|
ISO size |
ANSI size |
Basic dimension |
||
|
I.C(mm) |
S(mm) |
R |
||
|
SNGN090304 |
SNG321 |
9.525 |
3.18 |
0.4 |
|
SNGN090408 |
SNG332 |
9.525 |
4.76 |
0.8 |
|
SNGN120408 |
SNG432 |
12.7 |
4.76 |
0.8 |
|
SNGN120412 |
SNG433 |
12.7 |
4.76 |
1.2 |
|
SNGN120416 |
SNG434 |
12.7 |
4.76 |
1.6 |
|
SNGN120432 |
SNG438 |
12.7 |
4.76 |
3.2 |
|
SNGN120712 |
SNG453 |
12.7 |
7.94 |
1.2 |
|
SNGN150720 |
SNG555 |
15.875 |
7.94 |
2.0 |
|
SNGN190724 |
SNG656 |
19.05 |
7.94 |
2.4 |
|
SNGN201024 |
SNG776 |
20 |
10 |
2.4 |
|

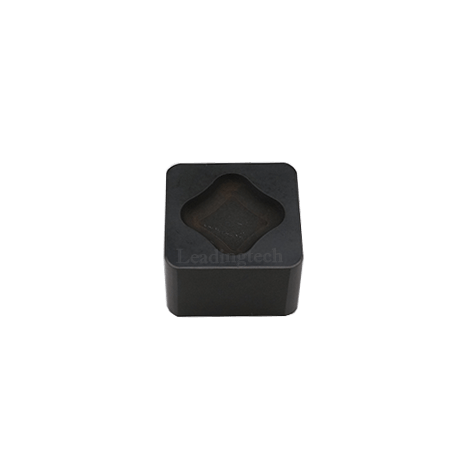

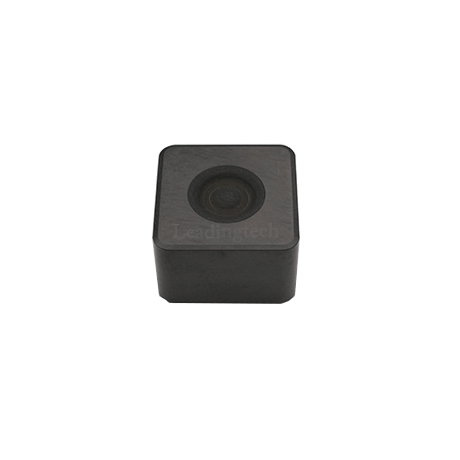

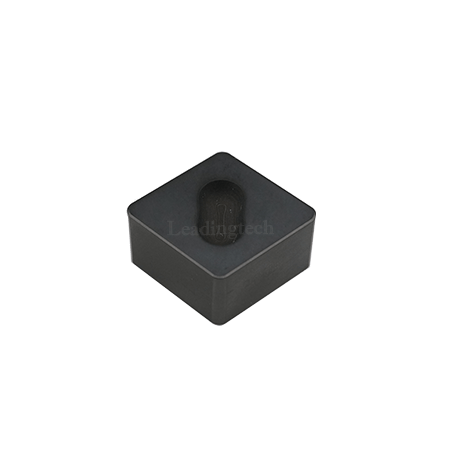

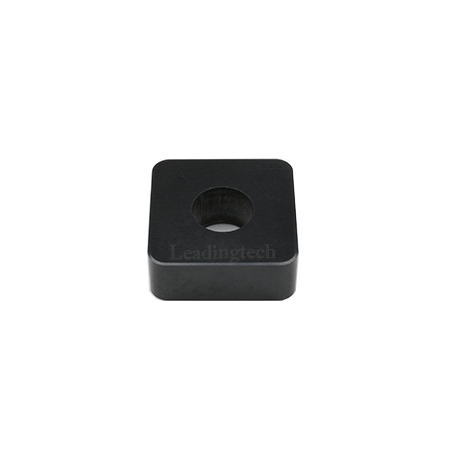

SNGA or SNGX insert with dimple holes could be available,for example:SNGX120712S02020 |
||||
