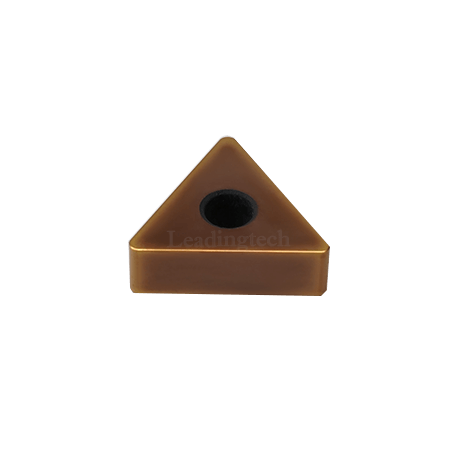

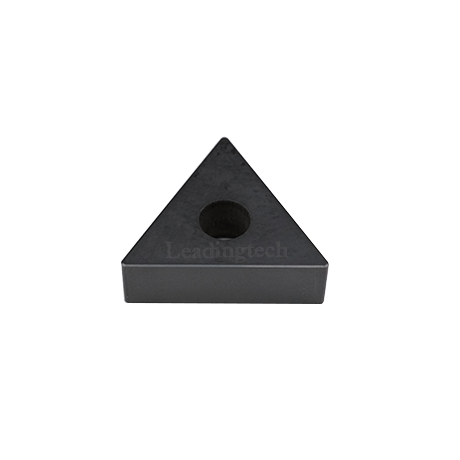

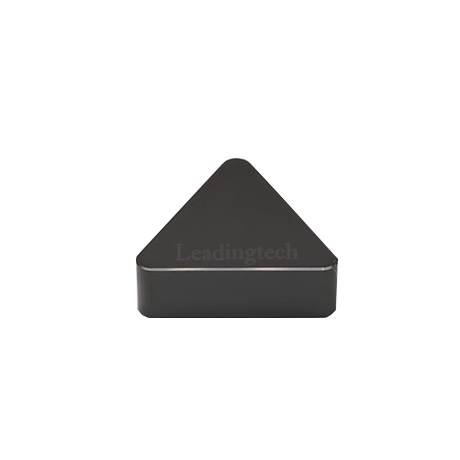

TNGN Solid CBN Insert
Product series: TNGN Solid CBN insert.
Application: Roughing and finishing cast irons,hardened steels and other alloy steel.
Packaging:10pcs in one plastic box.
Delivery time: One week.

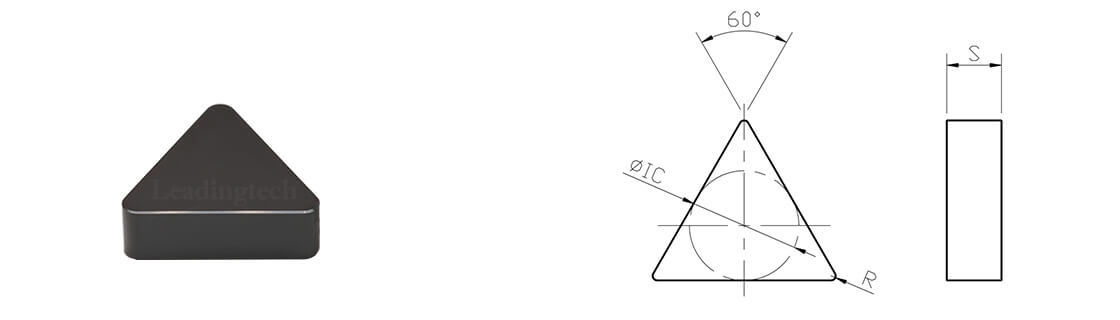

Specification
|
ISO size |
ANSI size |
Basic dimension |
||
|
I.C(mm) |
S(mm) |
R |
||
|
TNGN110304 |
TNG221 |
6.35 |
3.18 |
0.4 |
|
TNGN110308 |
TNG222 |
6.35 |
3.18 |
0.8 |
|
TNGN110312 |
TNG223 |
6.35 |
3.18 |
1.2 |
|
TNGN160408 |
TNG332 |
9.525 |
4.76 |
0.8 |
|
TNGN160412 |
TNG333 |
9.525 |
4.76 |
1.2 |
|
TNGN160420 |
TNG335 |
9.525 |
4.76 |
2.0 |
|
TNGN160708 |
TNG352 |
9.525 |
7.94 |
0.8 |
|
TNGN160712 |
TNG353 |
9.525 |
7.94 |
1.2 |
|
TNGA or TNGX insert with dimple hole could be available,for example:TNGA160408S01020 |
||||
