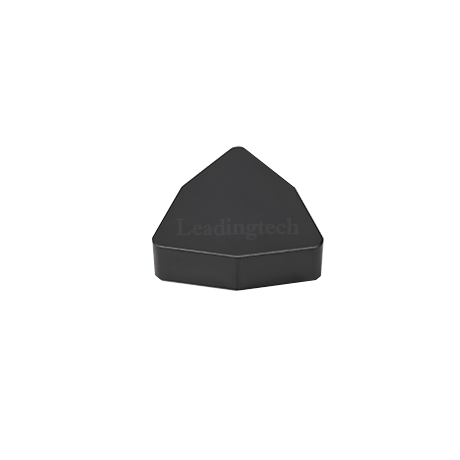

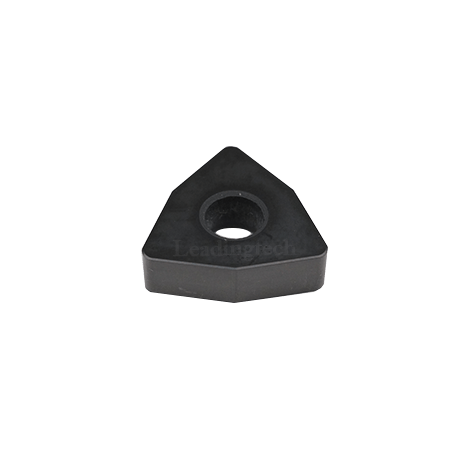

WNGN Solid CBN Insert
Product series: WNGN Solid CBN insert.
Application: Roughing and finishing cast irons,hardened steel,carbide and other alloy steels.
Packaging:10pcs in one plastic box.
Delivery time: One week.
Specification
|
ISO size |
ANSI size |

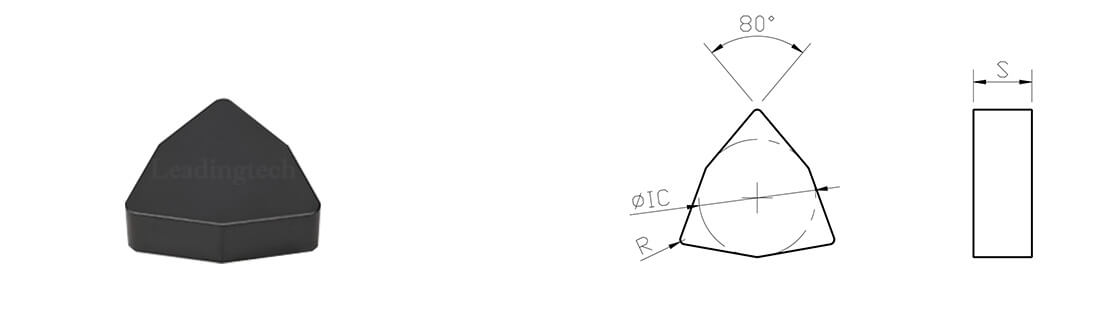

Basic dimension |
||
|
I.C(mm) |
S(mm) |
R |
||
|
WNGN060404 |
WNG331 |
9.525 |
4.76 |
0.4 |
|
WNGN080404 |
WNG431 |
12.7 |
4.76 |
0.4 |
|
WNGN080408 |
WNG432 |
12.7 |
4.76 |
0.8 |
|
WNGN080412 |
WNG433 |
12.7 |
4.76 |
1.2 |
|
WNGN080416 |
WNG434 |
12.7 |
4.76 |
1.6 |
|
Other special size could be supplied according to customer’s request.for example: WNGN100408. |
||||
