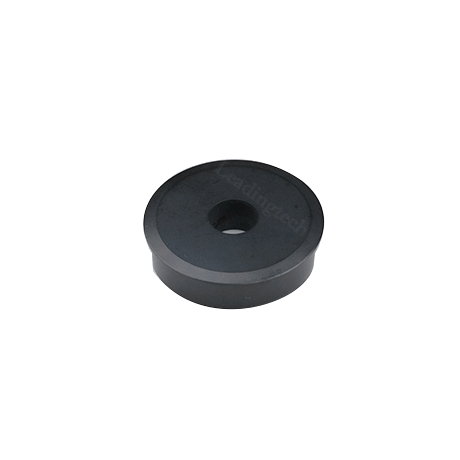

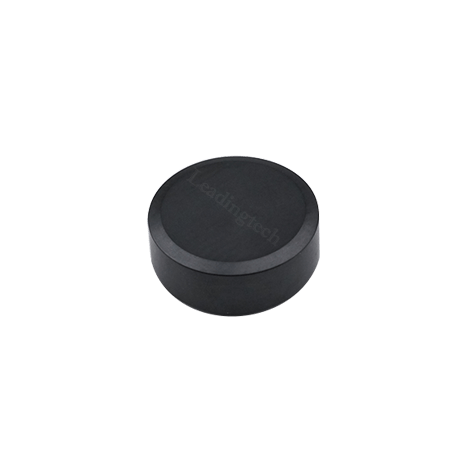

RNGN Solid CBN Insert
Product series: RNGN Solid CBN insert.
Application: Roughing and finishing cast irons,hardened steels and other alloy steel.
Packaging:10pcs in one plastic box.
Delivery time: One week.
Specification
|
ISO size |
ANSI size |
Basic dimension |
||
|
I.C(mm) |
S(mm) |
R |
||
|
RNGN060300 |
RNG22 |
6.35 |
3.18 |
0 |
|
RNGN090300 |
RNG32 |
9.525 |
3.18 |
0 |
|
RNGN090700 |
RNG35 |
9.525 |
7.94 |
0 |
|
RNGN120300 |
RNG42 |
12.7 |
3.18 |
0 |
|
RNGN120400 |
RNG43 |
12.7 |
4.76 |
0 |
|
RNGN12T600 |
RNG44.5 |
12.7 |
6.8 |
0 |
|
RNGN120700 |
RNG45 |
12.7 |
7.94 |
0 |
|
RNGN150700 |
RNG55 |
15.875 |
7.94 |
0 |
|
RNGN190700 |
RNG65 |
19.05 |
7.94 |
0 |
|
RNGN250700 |
RNG85 |
25.4 |
7.94 |
0 |
|
RNGN311000 |
RNG106 |
31.75 |
10 |
0 |
|
RNGA and RCGN insert could be available upon request,for example:RCGN120400 |
||||
