CNGN Solid CBN Insert
Product series: CNGN Solid CBN insert.
Application: Roughing and finishing cast irons,hardened steels and other alloy steel.
Packaging:10pcs in one plastic box.
Delivery time: One week.

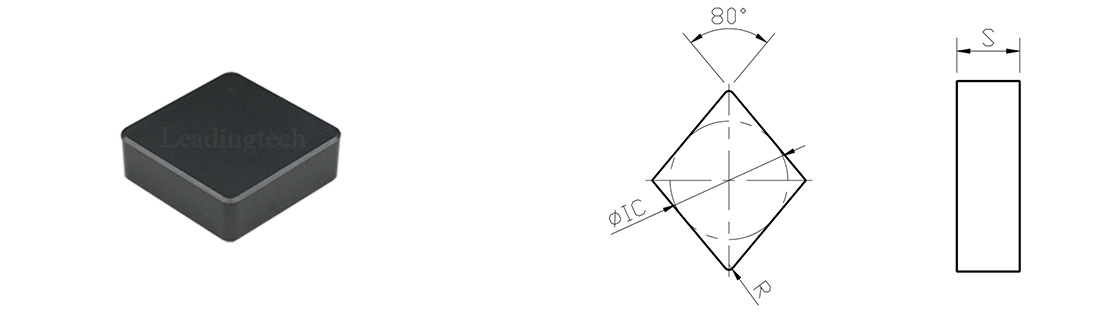

Specification
|
ISO size |
ANSI size |
Basic dimension |
||
|
I.C(mm) |
S(mm) |
R |
||
|
CNGN090304 |
CNG321 |
9.525 |
3.18 |
0.4 |
|
CNGN09T308 |
CNG32.52 |
9.525 |
3.97 |
0.8 |
|
CNGN090412 |
CNG333 |
9.525 |
4.76 |
1.2 |
|
CNGN120408 |
CNG432 |
12.7 |
4.76 |
0.8 |
|
CNGN120412 |
CNG433 |
12.7 |
4.76 |
1.2 |
|
CNGN120416 |
CNG434 |
12.7 |
4.76 |
1.6 |
|
CNGN120432 |
CNG438 |
12.7 |
4.76 |
3.2 |
|
CNGN120712 |
CNG453 |
12.7 |
7.94 |
1.2 |
|
CNGN160716 |
CNG554 |
15.875 |
7.94 |
1.6 |
|

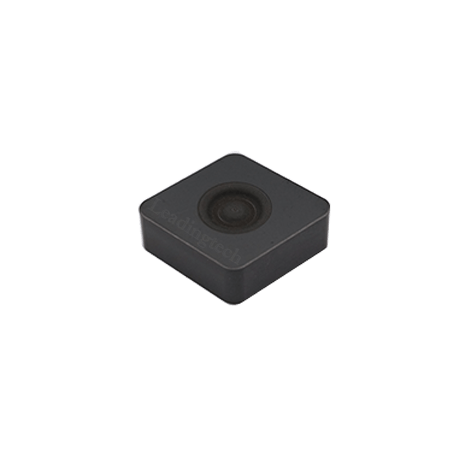

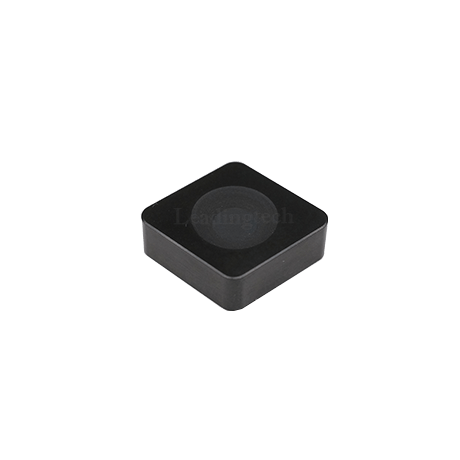

CNGA or CNGX insert with dimple holes could be available,for example:CNGX120412S02020 |
||||
