RCGX Solid CBN Insert
Product series: RCGX Solid CBN insert.
Application: Roughing and finishing cast irons,hardened steel,Carbide,HSS and other alloy steel rolls.
Packaging:10pcs in one plastic box.
Delivery time: One week.
Specification
|
ISO size |
ANSI size |

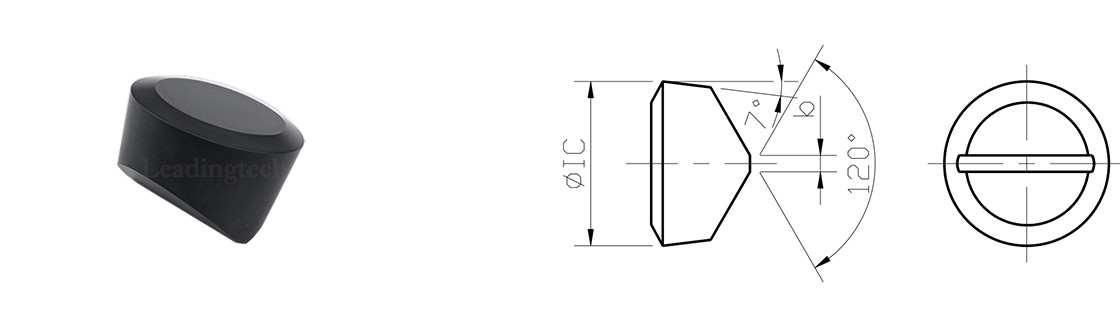

Basic dimension |
||
|
I.C(mm) |
S(mm) |
R |
||
|
RCGX060500 |
RCGX102 |
6.35 |
5 |
0 |
|
RCGX060700 |
RCGX102 |
6.35 |
7.94 |
0 |
|
RCGX090700 |
RCGX103 |
9.525 |
7.94 |
0 |
|
RCGX120700 |
RCGX104 |
12.7 |
7.94 |
0 |
|
RCGX151000 |
RCGX105 |
15.875 |
10 |
0 |
|
RCGX191000 |
RCGX106 |
19.05 |
10 |
0 |
|
RCGX251200 |
RCGX108 |
25.4 |
12 |
0 |
|
Other special RCGX size could be available upon request. For example:RCGX060600S02020 |
||||
